Weigh Gram Scale Calibration: Step-by-Step Accuracy Guide

If you use a digital gram scale for jewelry, coins, collectibles, lab-style hobbies, or small parcels, a small drift can turn into real money over time. Weigh gram scale calibration is how you bring the scale back to a known reference so the readings you trust today still match reality tomorrow.

Below is a practical, step-by-step guide you can follow for most pocket scales and tabletop gram scales, plus simple ways to confirm accuracy and troubleshoot common issues.

What “calibration” means (and what it does not)

Calibration is the process of adjusting a scale’s internal reference so that a known mass (a calibration weight) reads correctly. It is different from:

• Tare (zeroing): Sets the display to 0.00 while a container is on the platform. Tare helps you weigh “net” contents, but it does not fix a scale that measures incorrectly.
• An accuracy check: Testing the scale with one or more known weights without changing settings. Checks tell you whether you need to calibrate.

In other words, tare is something you do constantly. Calibration is something you do when the scale’s readings no longer align with a known standard.

What you need before you start

Most calibration problems come from the setup, not the button presses. Prepare these basics first.

1) A proper calibration weight (strongly recommended)

Use a purpose-made calibration weight that matches your scale’s manual (often 50 g, 100 g, 200 g, 500 g, or 1000 g depending on capacity). Calibration weights are made to defined tolerances, often aligned with OIML classes (a common international standard for weights, see OIML R 111).

If you do not have the manufacturer’s recommended weight, use a weight close to what the scale expects in CAL mode. Avoid using random household items.

2) A stable environment

Gram scales are sensitive. Set up with:

• A rigid, level surface (not a couch, not your lap)
• No airflow (fans, open windows, HVAC vents)
• Minimal vibration (washing machines, footsteps on a shaky table)
• Consistent temperature (let the scale and weights acclimate)

3) Clean platform, fresh power

Wipe the weighing pan gently (dust can change readings at fine resolutions). If your scale uses batteries, replace weak batteries before calibrating.

Choosing the right calibration weight (quick guidance)

Your manual is the authority, but if you are unsure, these rules of thumb help:

• Use the exact mass your scale requests during calibration.
• If your scale allows different calibration points, choose a weight near the upper part of the range (often 50% to 100% of capacity).
• Use a weight with a reasonable tolerance (better weights reduce “calibration to a bad reference”).

Here is a practical mapping for common consumer gram scales (examples, not a substitute for your manual):

Scale max capacity (typical)	Common readability	Common calibration weight prompts	Good starting point if the scale allows it
200 g to 300 g	0.01 g	100 g or 200 g	100 g (or manual-specified)
500 g	0.01 g	200 g or 500 g	200 g to 500 g
1000 g (1 kg)	0.1 g or 0.01 g	500 g or 1000 g	500 g to 1000 g
2000 g (2 kg)	0.1 g	1000 g or 2000 g	1000 g

If your use case is sensitive (for example, precious metals or gemstones), it is worth buying a small set of calibration weights and storing them carefully.

Step-by-step: weigh gram scale calibration for most digital scales

Different brands use slightly different button names, but the flow is usually the same.

Step 1: Warm up the scale

Turn the scale on and let it sit for 3 to 10 minutes (or whatever the manual specifies). Many load cells drift slightly as electronics stabilize.

Step 2: Clear the platform and zero

Remove everything from the pan. Press TARE or ZERO and wait for a stable 0.00 (or 0.000) reading.

Tip: If the display will not settle, fix the environment first (drafts, vibration, or an uneven surface) before attempting calibration.

Step 3: Enter calibration mode

Common methods:

• Press and hold CAL for a few seconds
• Press and hold MODE until “CAL” appears
• Power on while holding a key combination (less common)

Some scales ask for a passcode or a long press sequence. Follow the screen prompts.

Step 4: Confirm the required weight

The display will typically show a target such as “100.00” or “200.00”. This is the mass (in grams) it expects.

Do not guess if you can avoid it. If the scale expects 200 g and you place 100 g, the scale may fail calibration or calibrate incorrectly.

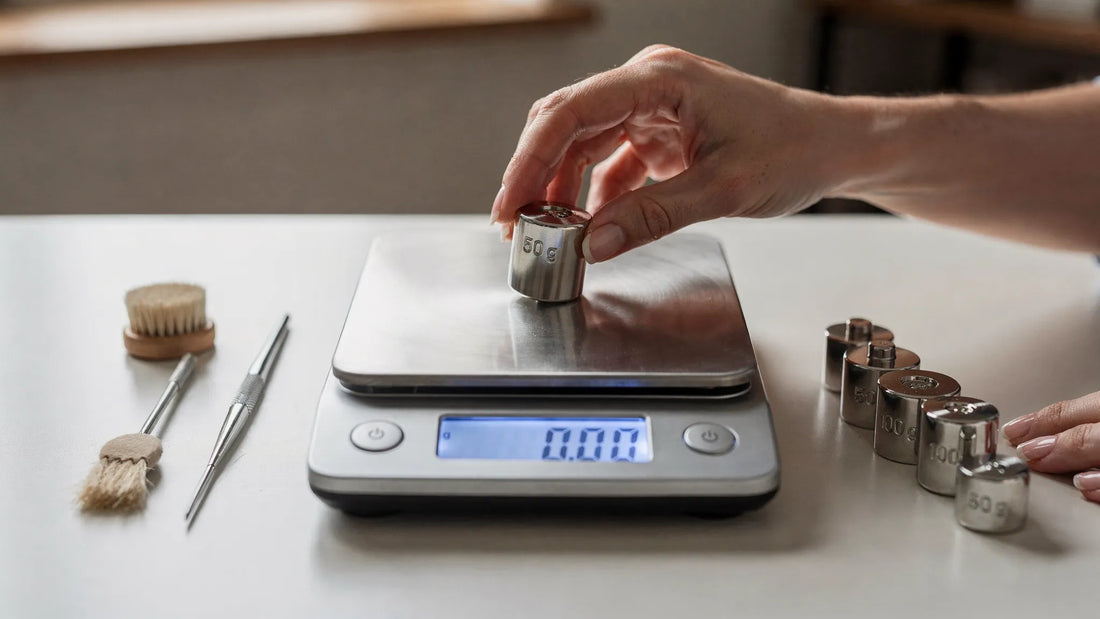

Step 5: Place the calibration weight gently

Place the correct weight centered on the pan, then keep hands away from the platform. Wait for a stable indicator (often “PASS”, “END”, or a beep).

Important handling notes:

• Do not drop the weight onto the pan.
• Avoid touching the weight with warm fingers for long periods (heat and oils are not your friend at fine tolerances).
• If you have tweezers or gloves for small weights, use them.

Step 6: Save and exit

Most scales automatically save when the calibration is successful, then return to weighing mode. Others require a final press of CAL or MODE.

Step 7: Power cycle (optional, but helpful)

Turn the scale off and back on. This is not always required, but it can clear any temporary state and confirm the scale returns to normal operation.

Verify accuracy after calibration (do not skip this)

Calibration is only as good as the reference weight and the test that follows. Verification is how you catch mistakes immediately.

Use at least two points if you can

If you have multiple weights, check a low and a high point (for example, 50 g and 200 g on a 500 g scale). This helps reveal linearity issues where the scale is accurate near one point but off elsewhere.

Repeat measurements to check consistency

A simple home check:

• Weigh the same calibration weight 5 times
• Remove it between each measurement
• Note the readings

A good result is tight clustering around the true value. If readings jump around, you have a stability problem (environment, low battery, or a worn load cell).

How close is “close enough”?

Your scale’s specs determine what is realistic. A simple guideline for consumer digital scales is that readings should generally fall within 1 to 2 divisions of the display.

Example: If your scale reads to 0.01 g, one division is 0.01 g. Being off by 0.01 g to 0.02 g at a given test point can be normal for inexpensive models, while higher-end scales may do better.

For formal definitions and metrology context, NIST’s weights and measures resources are a credible reference point: NIST Weights and Measures.

Common calibration problems (and fixes)

The scale shows “ERR” or fails calibration

Common causes:

• Wrong calibration weight value
• Weight not stable on the pan, or you moved the table
• Low battery
• Overload history (the scale has been stressed past capacity)

Fix: Reset your setup, replace batteries, re-enter CAL mode, and use the correct weight.

The scale will not return to 0.00 consistently

This is usually not a calibration issue. It is often:

• Air movement
• Vibration
• A dirty or slightly jammed pan
• Static electricity (very common with plastic trays)

Fix: Move locations, clean the pan, and try again. If static is persistent, lightly wiping the tray with an anti-static cloth can help.

It calibrates, but readings are still off

Likely causes:

• Your calibration weight is not accurate (or mislabeled)
• You calibrated with the wrong target value
• The scale has non-linearity or a damaged sensor

Fix: Verify with another known weight (or a higher-class weight). If the problem persists across multiple weights, consider replacing the scale.

How often should you calibrate?

There is no single schedule for every user, but these triggers are reliable:

• After moving the scale to a new location
• After temperature or humidity shifts (garage to indoors, winter to summer)
• After changing batteries
• After any overload event (someone accidentally weighed something too heavy)
• When verification checks start drifting

For occasional home use, a monthly check is often enough. For frequent high-precision use, consider a quick verification check at the start of each session and calibrate when checks fail.

Best practices that keep gram scales accurate longer

Calibration helps, but daily habits matter more than people expect.

Store the scale like an instrument

Keep it covered, dry, and away from dust. If it came with a hard case, use it.

Avoid “close enough” habits

• Do not weigh above rated capacity
• Do not press on the pan while cleaning
• Do not leave heavy objects sitting on the pan

Use the right scale for the job

If you regularly weigh near capacity, accuracy often suffers. A common best practice is to choose a capacity where your typical loads sit comfortably below the maximum.

Here is a quick comparison to help match scale type to common needs:

Need	Typical best fit	Why
Jewelry, gemstones, small parts	0.01 g pocket scale	Good balance of resolution and durability
Very small powders or components	0.001 g (milligram) scale	Higher resolution, more sensitive to drafts
Parcels, small boxes	0.1 g to 1 g bench scale	Better capacity, less fussy environment

Getting the right tools (scales, weights, accessories)

If you are calibrating because your readings have become unreliable, it may be time to replace a worn-out unit or add proper weights to your toolkit.

JCR-2 is an online shop with a broad product catalog across categories. If you want to browse for a replacement scale, calibration weights, or storage accessories (availability varies), you can start at the JCR-2 catalog.

Quick recap

Accurate weighing is mostly about disciplined setup:

• Calibrate with the correct, known calibration weight
• Control drafts, vibration, and temperature
• Verify after calibration with at least one additional known weight
• Re-calibrate after moves, battery changes, or overload events

Done right, weigh gram scale calibration takes only a few minutes, and it can save you from weeks of slow measurement drift.
